• Honda Dio STD

    Overview of Honda Dio STD

    Honda Dio STD General Features
    Top Speed -
    Engine Capacity -
    Starting -
    Brakes Drum
    Gear Box CVT
    Fuel Tank Capacity 5.3 L
    Tyre Type Tubeless
    Honda Dio STD Standard Features
    Pass Switch
    Cooling System
    Body Graphics
    Carry Hook
    Shutter Lock
  • Available Colors of Honda Dio STD

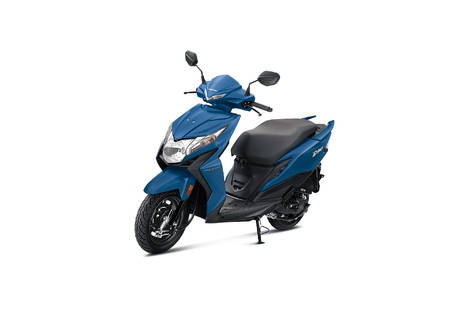

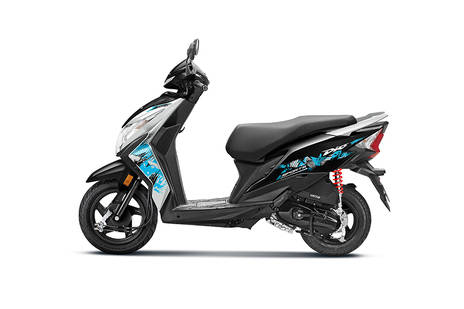

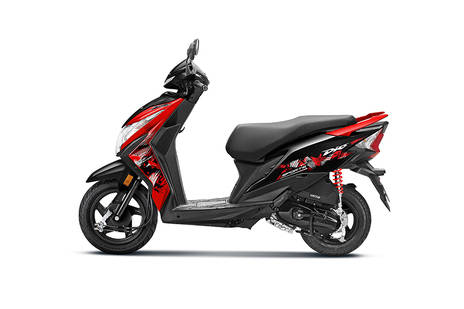

  • Honda Dio STD Pictures

  • Honda Dio STD Specification

    Honda Dio STD Engine & performance
    Engine Type Fan Cooled, 4 Stroke, SI Engine
    Displacement (CC) 109.51
    Mileage (KM/L) -
    Bore 47.0 mm
    Stroke 63.1 mm
    Compression Ratio 10.0+0.2
    Maximum Power 7.76 PS @ 8000 rpm
    Maximum Torque 9 Nm @ 4750 rpm
    Starting Kick and Self Start
    Maximum Speed -
    Honda Dio STD Transmission
    Gear Box CVT
    Clutch Automatic
    Transmission Type Automatic
    Honda Dio STD Fuel
    Fuel Capacity 5.3 L
    Supply System -
    Fuel Reserve -
    Fuel Gauge Analog
    Digital Fuel Gauge -
    Honda Dio STD Brake
    Brakes Drum
    Front Brake Drum
    Rear Brake Drum
    Honda Dio STD Tyre Size
    Tyre Size

    Front :-90/90-12,

    Rear :-90/100-10

    Radial Tyres -
    Honda Dio STD Wheel Size
    Wheel Size

    Front :-304.8 mm,

    Rear :-254 mm

    Wheel Base 1260 mm
    Honda Dio STD Chassis and Suspension
    Bike Suspension -
    Honda Dio STD Frame
    Chassis/ Frame -
    Honda Dio STD Electrical
    Ignition -
    Battery Type -
    Head Lamp -
    Tail Lamp -
    Turn Signal Lamp Bulb
  • Honda Dio STD Features

  • Honda Dio STD Details

    Honda Dio STD Details
  • Honda Dio STD Dimensions

    Honda Dio STD Exterior Dimensions
    Length (mm) 1808 mm
    Height (mm) 1150 mm
    Width (mm) 723 mm
    Ground Clearance (mm) 160 mm
    Saddle Height -
    Kerb Weight 105 kg
    Total Weight -
    Weight Carrying Capacity -
    Chassis/ Frame -
    Wheel Base 1260 mm
  • Disclaimer : View shown is for top variant and actual accessories / fitment may vary across variants
